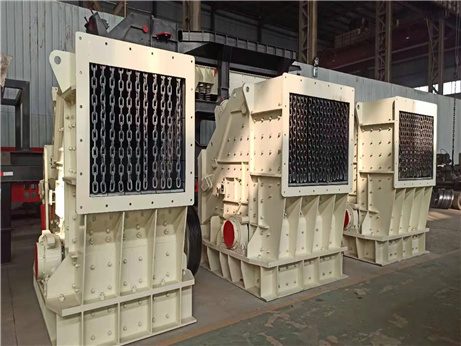

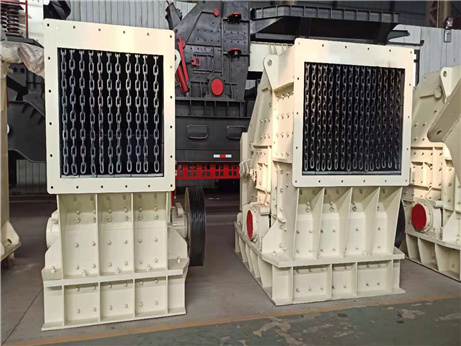

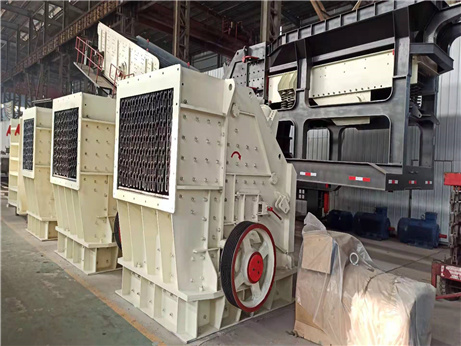

Box crusher

Capacity：50-400t/h......

Introduction： Processing materials: crushing of bluestone, cobble, river cobble, quartz, coal mine stone, iron ore and other stones.Economic benefits: high yield, large crus.....

Product Description

Processing materials: crushing of bluestone, cobble, river cobble, quartz, coal mine stone, iron ore and other stones.

Economic benefits: high yield, large crushing ratio, stable performance, high output, reversible chassis and convenient maintenance.

Product Advantage

1. Large feed particle size, large crushing ratio and uniform discharge.

2. High yield, granular products account for about 85%, which fully meet the use requirements.

3. The installation of hammer shaft of box crusher is adjustable and the service life of hammer head is long.

4. The grid size is adjustable, the product particle size is controllable and the particle shape is good.

5. The case of box crusher can be turned over, which is more convenient for maintenance.

6. Square shank bolt, impact and wear resistance.

7. High output and stable performance.

8. Coarse and medium crushing are in place in one step, and the process flow is simplified.

9. The hammer head, grate plate and counterattack plate made of high wear-resistant materials have a longer service life.

10. Low supporting power, low energy consumption, simple maintenance and few vulnerable parts.

Product Parameter

Model and specification	700×1000	900×1200	1000×1000	1200×1200	1400×1400	1600×1600	1800×1800
Roller diameter(mm)	700	900	1000	1200	1400	1600	1800
Roller length(mm)	1000	1200	1000	1200	1400	1600	1800
Yield(t/h)	50-80	70-100	90-120	130-160	190-210	250-300	300-400
Feed particle size(mm)	≤500	≤800	≤800	≤900	≤1000	≤1000	≤1200
For stone	Pressure 300mpa various stones
Power(kw)	45-55	75-90	75-90	110-132	132-160	160-210	210-280

Working Principle

The stone falls directly into the high-speed rotating rotary table from the upper part of the machine. Under the action of high-speed centrifugal force, it produces high-speed impact and high-density crushing. After striking each other, the stone will form eddy motion between the rotary table and the casing, resulting in multiple mutual blows, friction and powder crushing until it is crushed to the required particle size.

The frame part of the box crusher is a three-part structure. Just open the rear shell of the crusher to replace the plate hammer, crushing plate, lining plate and other maintenance operations. The box crusher has strong interchangeability and few varieties of vulnerable parts, which is convenient for the procurement and management of spare parts. The hydraulic opening device is used for opening and closing the casing, which can effectively reduce the maintenance labor intensity, improve the maintenance efficiency and shorten the maintenance time. The monitoring system of the box crusher can monitor the operation status of the crusher at any time, and the monitoring signal can be interlocked with the main control system to ensure the safe and reliable operation of the machine. The drive system of the box crusher adopts the mode of motor + mechanical coupling + V-belt + crusher, which can effectively improve the starting performance of the motor and make the motor start and run smoothly. The belt drive mode can play a dual overload protection function, the motor power required by the drive system is low, and the operation cost is greatly reduced.
