Capacity：1-35 t/h......

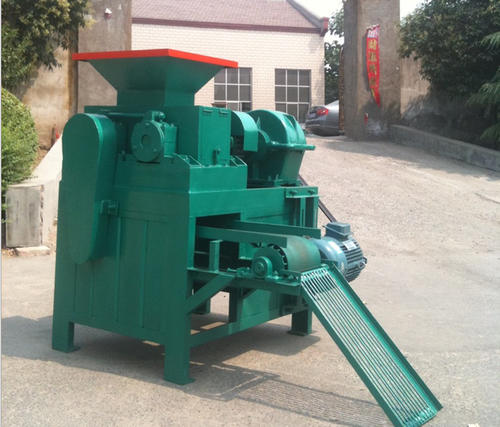

Introduction：The mineral powder ball press produced by our company is a new type of ball press equipment with improved structure according to the characteristics of material.....
The mineral powder ball press produced by our company is a new type of ball press equipment with improved structure according to the characteristics of materials. It has high pressure, high strength and key components are upgraded, which is more wear-resistant and easy to use, improves the service life and operates more stably.
Finished ball
The machine can produce square, ball and egg, round, goose egg, pillow and other special shapes of finished balls. The specific shape can be defined by the user. See the following figure for finished product samples:
Wide application range
1. The ore powder ball press can be used to press various powders, powders, wastes and waste residues such as pulverized coal, iron powder, aluminum powder, iron filings, iron oxide scale, carbon powder, carbon powder, slag, gypsum, tailings, sludge, kaolin and coke powder. It is widely used in refractory, power plant, metallurgy, chemical industry, energy, transportation, heating and other industries;
2. The materials produced and formed by the ball press are energy-saving, environment-friendly, convenient for transportation, improve the utilization rate of waste, and have good economic and social benefits. The ore powder pellet press is used to press the kiln powder into pellets for smelting.
product mix
1. The feeding part is mainly to realize quantitative feeding to ensure that the materials enter the counter roll evenly;
2. In the transmission part, the main transmission system is: Motor - triangular belt - reducer - Open Gear - roll;
3. The forming part mainly refers to the host part, and the core part is the roll.
1. The roller skin of the ore powder ball press produced by our company is cast with 65 manganese, and the hardness can reach more than 58 degrees after special heat treatment;
| Product model | Roller skin diameter (mm) |
Design output (t/h) |
Motor power (kw) |
| WL290 | 290 | 1-3 | 5.5 |
| WL360 | 360 | 4-6 | 7.5 |
| WL400 | 400 | 6-8 | 1 1 |
| WL500 | 500 | 7-9 | 18.5-30 |
| WL650 | 650 | 10-15 | 22-37 |
| WL750 | 750 | 15-20 | 30-75 |
| WL850 | 850 | 20-25 | 75-90 |
| WL1000 | 1000 | 25-35 | 90-110 |
During the operation of the ore powder ball press equipment, the materials are transmitted to the reducer through the V-belt, and the reducer is transmitted to the driving shaft through the coupling, and then by a pair of open gears to ensure the synchronization of the two roller shafts (constant speed reverse). The piston of the hydraulic cylinder of the passive roller is supported (the piston of the constant pressure type is supported by the inclined iron), and the system pressure is guaranteed by the hydraulic circuit, hydraulic control valve and accumulator, The material enters the hopper of the forming machine evenly from the storage bin through the quantitative equipment, and is adjusted through the adjusting gate on the hopper to make the material enter the middle of the counter roll evenly. The counter roll running in reverse at constant speed is compressed. The unit forming pressure of the material increases from small to large, and the forming pressure reaches a large value at the connecting line at the center of the counter roll. After the material passes through the line, the forming pressure decreases rapidly, so that the material enters the ball removal state, Take off and press the ball smoothly.
