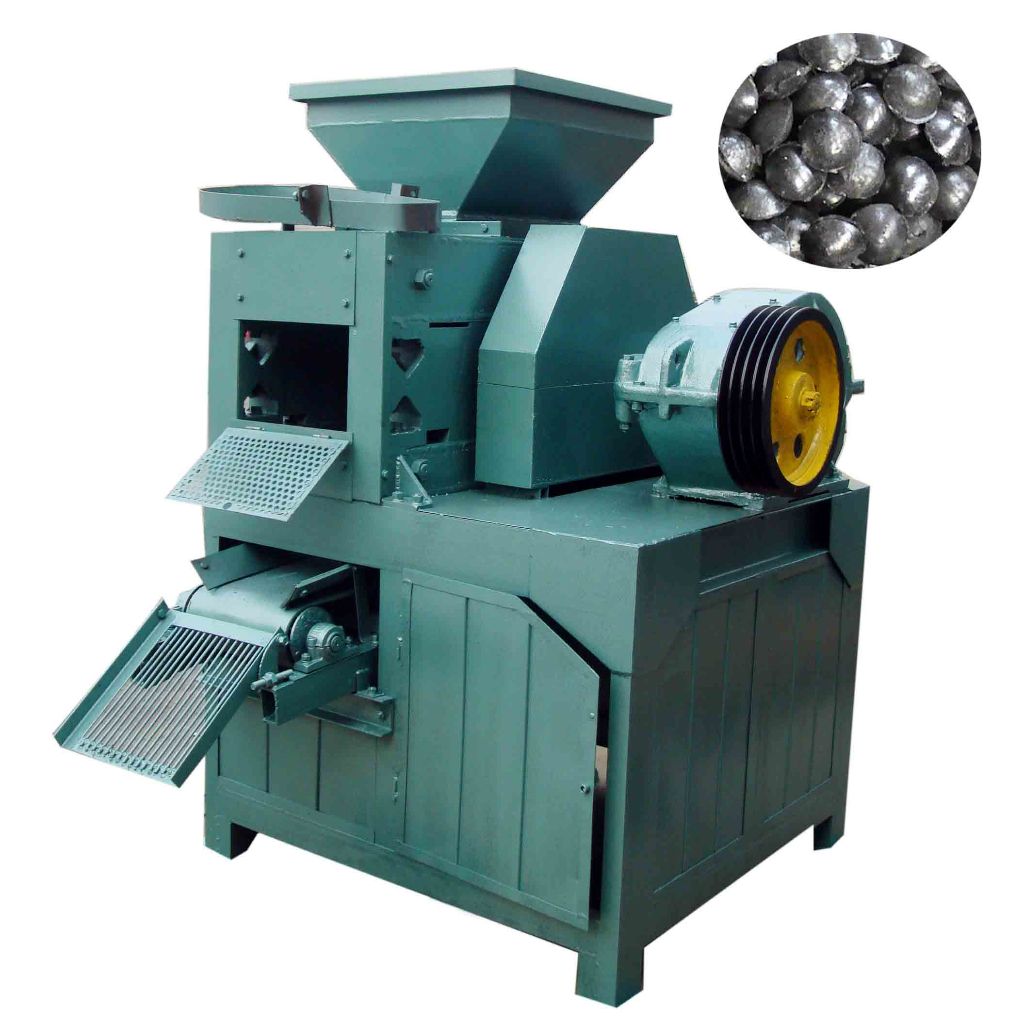

Strong ball press

Capacity：1～70 t/h......

Introduction：The strong ball pressing machine is used for the pressing of pulverized coal, slime, medium coal, coke powder, coking coal and metallurgical powder cold pressed.....

Product Description

The strong ball pressing machine is used for the pressing of pulverized coal, slime, medium coal, coke powder, coking coal and metallurgical powder cold pressed pellets and refractory materials. All powdery materials that need to be put into the furnace can be pressed by the strong ball pressing machine, which has obvious points such as high balling rate, low power consumption, compact structure and convenient maintenance and commissioning.

Finished ball

The machine can produce square, ball and egg, round, goose egg, pillow and other special shapes of finished balls. The specific shape can be defined by the user. See the following figure for finished product samples:

Product Advantage

1、 Application scope:

1. Pressing of powdery materials, such as dust removal ash, sludge, oxide scale, steel slag, iron concentrate powder, aluminum ash powder and silicon manganese ore powder

2. Pressing of various briquettes: such as pulverized coal, slime, medium coal, coke powder, coking coal, etc.

3. Other materials that are difficult to form and need to be pressed into balls.

2、 Material selection:

The roller skin of the strong ball press is cast with 65 manganese. After special heat treatment, the hardness can reach more than 58 degrees. The roll cover is assembled and can be replaced after wear. The powerful ball press has a buffer device, which can better protect the equipment from the impact of hard objects. The powerful ball pressing machine is designed with a ball bowl adjustable device, so that the two roll leather ball bowls are within the adjustable range and will not be misplaced all the time.

Product Parameter

Model	Time production (t/h)	Roll width (mm)	Roll diameter (mm)	Power (kw)	Spindle speed (r/min)
WL-360	2-4	250	360	7.5	18
WL-400	4-8	280	400	11-15	15
WL-500	8-11	300	500	18.5-22	13
WL-650	11-18	336	650	20-30	13
WL-750	18-25	400	750	45	13
WL-850	25-35	500	850	75	10
WL-1250	35-70	650	1250	130	10

Working Principle

The strong ball press is a ball making equipment, which continuously sends various dry and wet powders to the rolling area of the strong ball press through the pre pressing device, and presses the dry and wet powders into balls under the pressure of the rolling area.
