Product Description

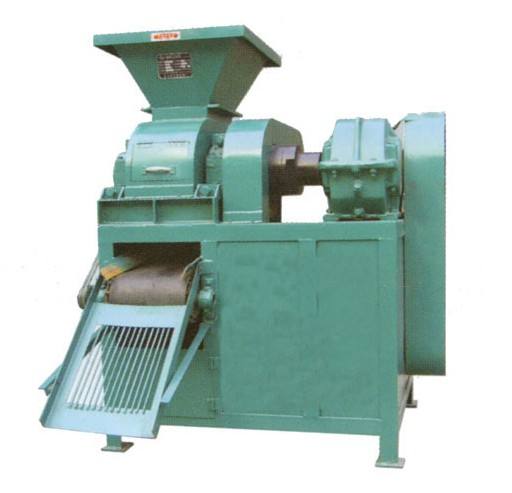

The new generation desulfurization gypsum ball press produced by our company can press various powders, powders, wastes and other difficult-to-form materials at one time. The diameter of the finished ball is generally between 20-80mm, and the pass rate is 85%. 75-90kg.

Product Advantage

The desulfurization gypsum ball press machine produced by our company can press the desulfurization gypsum powder into balls at one time. It has the advantages of large output, high ball formation rate, strong hardness of the finished ball, and unsuitable for handling and handling. It can not only easily realize the pressing of gypsum materials such as desulfurized gypsum, gypsum, and phosphogypsum, but also press various powders, powder materials, waste materials, and waste residues produced by power plants, metallurgy, chemical, energy and other industries. The materials produced by the ball press are energy-saving and environmentally friendly, easy to transport, and improve the utilization rate of waste materials, and have good economic and social benefits.

Product Parameter

technical parameter

Device model and name	Power (kw)	Capacity (t/h)
WLS-5 desulfurization gypsum ball press machine	37	5
WLS-10 desulfurization gypsum ball press	75	10
WLS-15 type desulfurization gypsum ball press	110	15
WLS-20 type desulfurization gypsum ball press	130	20

The supporting equipment of the desulfurization gypsum ball press machine-the main technical parameters of the encryption machine:

model	Work rate (kw)	Output (t/h)
WLJ-5 encryption machine	15	5
WLJ-10 encryption machine	twenty two	10
WLJ-15 encryption machine	37	15
WLJ-20 encryption machine	45	20

Working Principle

Structure principle

1. Internal structure :

The material produced by the desulfurization gypsum ball press machine is energy-saving and environmentally friendly, easy to transport, improves the utilization rate of waste, and has good economic and social benefits. The structure of the desulfurization gypsum ball press mainly includes a feeding part, a transmission part, and a forming part.

1. Feeding part: It is mainly to realize quantitative feeding to ensure that the material evenly enters the roller room;

2. Transmission part: motor--triangular belt---reducer---open gear---roller;

3. Forming part: press the materials that meet the requirements into a shape.

2. Working principle:

The pressing process of the desulfurization gypsum ball press: the material is transferred to the reducer through the v-belt, the reducer is connected to the coupling, and then to the driving shaft by a pair of open gears to ensure the synchronization of the two roller shafts (constant speed reverse> where passive The piston of the roller hydraulic cylinder is supported (the constant pressure type is supported by the inclined iron), the system pressure is ensured by the hydraulic circuit, the hydraulic control valve and the accumulator. The adjustment gate on the hopper is adjusted to make the material evenly enter the middle of the pair of rollers. The unit molding pressure of the material that compresses the rollers with constant speed and reverse rotation is changed from small to large, and the molding pressure at the center of the pair of rollers reaches a large value. After the material passes the line, the molding pressure decreases rapidly, so that the material enters the ball-off state, and the ball is off-ball smoothly.

Finished spherical

This machine can produce finished balls with special shapes such as square, ball and egg, round, goose, pillow and other special shapes. The specific shape can be defined by the user.
