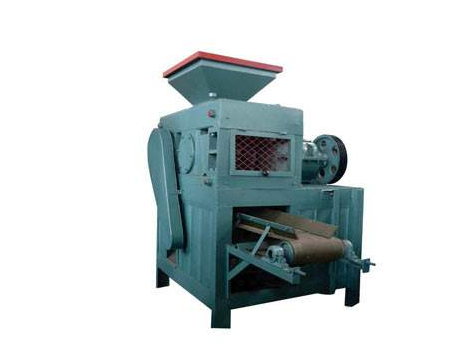

Coke powder ball press machine

Capacity：......

Introduction： Zhengzhou Weili special coke powder briquetting machine is a new type of briquetting equipment that is improved on the basis of the original briquetting machin.....

Product Description

Zhengzhou Weili special coke powder briquetting machine is a new type of briquetting equipment that is improved on the basis of the original briquetting machine based on customer feedback and the physical characteristics of the coke powder . It has the potential of high molding pressure, high ball formation rate, and stable operation.

Product Advantage

1. The product has the three characteristics of high density, high strength and high hardness, and the press roller of this machine adopts 650mn hard material, which has good wear resistance. Effectively improve the service life of the pressure roller.

2. Product quality and ease of use are outstanding in the coke powder briquetting machine industry.

3. At the same time, the technical staff of Zhengzhou Weilit also developed a special coke powder press ball adhesive formula, which saved a lot of funds and maintenance costs.

Product Parameter

technical parameter

model	Hourly production (t/h)	Roll width (mm)	Roll diameter (mm)	Power (kw)	Spindle speed (r/min)
WL-360	2-4	250	360	7.5	18
WL-400	4-8	280	400	11-15	15
WL-500	8-11	300	500	18.5-22	13
WL-650	11-18	336	650	20-30	13
WL-750	18-25	400	750	45	13
WL-850	25-35	500	850	75	10
WL-1250	35-70	650	1250	130	10

Working Principle

Structure principle

The main motor of the coke powder ball press machine: through the V-belt, it is transmitted to the reducer: the reducer is transmitted to the driving shaft through the coupling, and then by a pair of open gears to ensure the synchronization of the two roller shafts (constant speed reverse), and the passive The roller is supported by the piston of the hydraulic cylinder (constant pressure type is supported by the inclined iron), and the system pressure is guaranteed by the hydraulic circuit, hydraulic control valve and accumulator. The material enters the hopper of the forming machine evenly from the storage bin through the quantitative equipment. Through the adjustment of the adjusting gate on the hopper, the material will evenly enter the middle of the pair of rollers. The unit molding pressure of the material that compresses the rollers with constant speed and reverse rotation is changed from small to large, and the molding pressure at the center line of the pair of rollers reaches a large value. After the material passes the line, the forming pressure decreases rapidly, so that the material passes through the ball-off state, and the ball is off smoothly.
