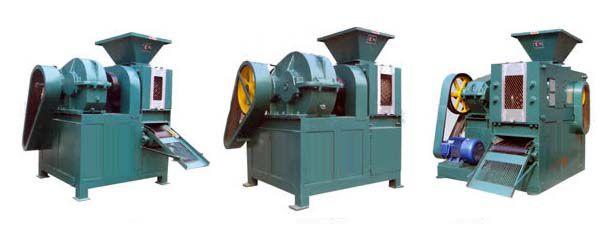

Lime powder briquetting machine

Capacity：0.5～5 t/h......

Introduction： Lime powder briquetting machine (quick lime briquetting machine) is a dry powder briquetting machine produced by Weilit . After being crushed, the material is.....

Product Description

Lime powder briquetting machine (quick lime briquetting machine) is a dry powder briquetting machine produced by Weilit . After being crushed, the material is directly produced on the machine without adding water. Such as: aluminum chips, activated carbon alumina, quicklime, etc. After years of research and development and production, the lime powder briquetting machine produced by our factory has the characteristics of high quality, low energy consumption, and good durability, and is deeply loved by customers.

Product Advantage

1. Zhengzhou Weilit lime powder briquetting machine is a new generation product developed based on the development direction of domestic and foreign counterparts, integrating the advantages of similar lime powder briquetting machines, and making full use of various mature and advanced technologies. The whole machine is luxurious and generous with strong rigidity. The roll is forged with wear-resistant alloy, the bearing is made of rolling mill bearing series, the main shaft is forged with large diameter 45# steel, quenched and tempered, and the hydraulic system is matched by a regular large factory.

2. Zhengzhou Welite Machinery also pays attention to the exploration and research of lime powder briquetting machine in energy saving and environmental protection. The lime powder briquetting machine produced by our factory has low energy consumption, high production efficiency and cost saving. At the same time, it is equipped with a specific dust removal device to reduce dust emissions, and it is an ideal equipment for your company's production.

Product Parameter

technical parameter

Model performance	WLZYGF-0.5	WLZYGF-1.0	WLZYGF-1.5	WLZYGF-2.0	WLZYGF-2.5	WLZYGF-3.0	WLZYGF-5.0
Work efficiency	0.5T/h	1.0T/h	1.5T/h	2.0T/h	2.5T/h	3.0T/h	5.0T/h
Roll diameter (mm)	∅299	∅367	∅367	∅399.5	∅480	∅522	∅700
Roll width (mm)	110	183	183	232	196	196	225
power	18.5kw	37kw	45kw	45kw	55kw	55kw	75kw
reducer	ZQ650	ZQ850	ZQ85	ZQ850	ZQ1000	ZQ1250	ZQ1450
Roll material	9CY2Mn	9CY2Mn	9CY2Mn	9CY2Mn	9CY2Mn	9CY2Mn	9CY2Mn
Bearing model and quantity	7522 8 sets	2097730 4 sets	2097730 4 sets	20997730 4 sets	2097736 4 sets	2097744 4 sets	2097752 4 sets
Finished spherical shape	customize	customize	customize	customize	customize	customize	customize

Working Principle

Structure principle

The main structure of the lime powder ball press is composed of transmission system, main frame, reducer, belt conveyor, pre-compression device, roller sleeve ball slot alignment device, hydraulic system and electronic control. When working, the lime powder is added quantitatively and evenly to the pre-compression device of the ball press to maintain a stable material level in the pre-compression device, and then the pre-compression screw in the pre-compression device forces the lime powder into the middle of the pair of rollers to pre-compress the material And conveyed to the arc-shaped slots of the two pairs of rollers, the surface of the two pairs of rollers are evenly distributed with the same shape of the roller sockets, through the meshing transmission, the two pairs of rollers are rotated at the same speed and in the opposite direction, and the lime powder that is transported to the slot It bites into the groove and is forced to compress. As the counter roller continues to rotate, the lime powder falls off the ball under the action of its elastic force and gravity. As the motor continuously rotates the pressure roller, it performs periodic rotation and pressing to achieve mass production.

Finished spherical

The lime powder briquetting machine produced by our company has a variety of ball shapes and sizes for users to choose, and users can also define their own shapes. The ball sample is shown in the figure below:
