Product Description

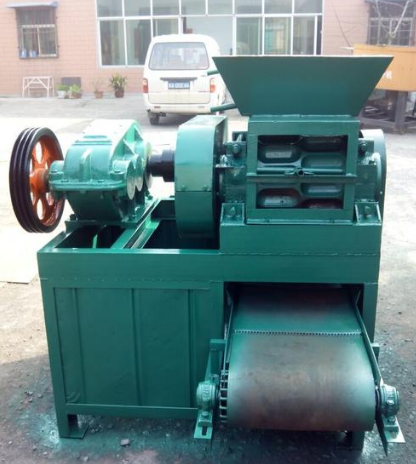

The metallurgical ball press machine is mainly used for the production of various metallurgical powder cold-pressed pellets. After the equipment is processed, a large amount of metallurgical powder materials and industrial waste can be rationally utilized. It can be said that all metallurgical powders that need to be pelletized are suitable for pressing with this kind of equipment.

Product Advantage

Product Potential

1. Pertinence and professionalism: The

metallurgical ball press is mainly used for metallurgical powder to be pressed into balls, and is used in metallurgy, refractory and other industries.

2. Strong production capacity. The

metallurgical ball press has a large production capacity and a wide selection of models, which can meet users with different capacity requirements.

Product Parameter

technical parameter

model	Hourly production (t/h)	Roll width (mm)	Roll diameter (mm)	Power (kw)	Spindle speed (r/min)	Spindle bearing (mm)	Spherical size
WLXM-360	2-4	250	360	7.5	18	319*4	Custom
WLXM-400	4-8	280	400	11-15	15	319*4	Custom
WLXM-500	8-11	300	500	18.5-22	13	2097724*4	Custom
WLXM-650	11-18	336	650	20-30	13	2097732*4	Custom
WLXM-750	18-25	400	750	45	13	2097732*4	Custom
WLXM-850	25-35	500	850	75	10	2097734*4	Custom
WLXM-1250	35-70	650	1250	130	10	2097744*4	Custom

Note: Technical parameters are subject to change without notice. For more detailed information, please contact us for free, thank you!

Working Principle

Structure principle

The structure of the metallurgical ball press is not complicated. The main components are: feeding part, transmission part, forming part, hydraulic part, and inclined iron bearing pressure. 　

1. Feeding method

Generally, there are three feeding methods for metallurgical ball press 1. Belt feeder feeding: Because it is economical and practical, this feeding method has become an ideal choice for consumers. 2. Horizontal screw feeder feeding: This feeding method is suitable for narrow rolls. 3. Pre-pressure screw feed: The main point of screw press feed is to use the method of adjustable screw speed to obtain the required pre-pressure.

2. Transmission part

The main drive system of the metallurgical ball press is: motor-v-belt-cylindrical gear reducer-open gear-roll.

3. Forming part

The forming part mainly refers to the main machine part, and its core part is the roll. The blank of the roll is divided into two types: integral forging and casting. The casting has low density and rough structure, but it is more economical. Forged with high density, compact structure, good wear resistance, long service life, good ball groove processing technology, many types of suitable materials, and reliable operation.

4. Hydraulic part

The entire hydraulic system of the metallurgical ball press has the functions of ensuring the forming pressure and protection, and the system is easy to operate and maintain.

5. Inclined iron bearing pressure

Its structure is to adjust the lead screw to press the inclined iron to move downward, and the backlog of another inclined iron provides a fixed thrust to the floating pressing roller, so that the pressing can work normally for a long time.

Finished spherical

The metallurgical ball press machine can produce square, ball-and-egg, round, goose-egg, pillow and other ball shapes for users to choose from. If users have special spherical needs, they can also define by themselves. The finished product sample is shown in the figure below:
