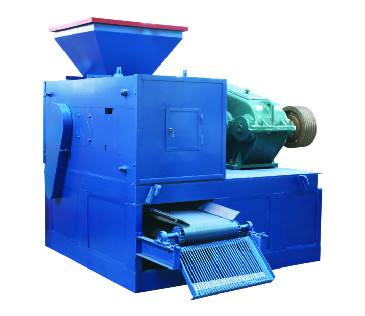

Bauxite ball press

Capacity：10,000 to 300,000 t/y......

Introduction： Bauxite ball press is a molding equipment for a variety of powdery materials, especially suitable for the pressing of powdery materials such as bauxite, coal p.....

Product Description

Bauxite ball press is a molding equipment for a variety of powdery materials, especially suitable for the pressing of powdery materials such as bauxite, coal powder, coke powder and so on. Bauxite ball press has a wide range of uses and is an important production tool in the production of various types of enterprises such as bauxite and briquette. Improving the comprehensive utilization rate of mineral resources such as high alumina, reducing resource waste and the abandonment of low-quality natural resources, can also bring new benefits to related enterprises such as alumina.

Product Advantage

Product Potential

1. Diversification of pressed materials The

bauxite ball press is not only for pressing bauxite materials, but also for pressing various types of materials such as coal powder, coal slime, and coke powder.

2. The equipment is energy-saving and environmentally friendly. The

new generation of bauxite ball presses have been improved in process technology to reduce dust emissions in production, and at the same time, the energy consumption is also greatly reduced, which increases the user's income.

3. Durability

bauxite ball press rolls of high hardness, wear resistance steel cast, thus greatly improving the durability of the device.

Product Parameter

technical parameter

model	Hourly production (t/h)	Roll width (mm)	Roll diameter (mm)	Power (kw)	Spindle speed (r/min)
WLXM-360	2-4	250	360	7.5	18
WLXM-400	4-8	280	400	11-15	15
WLXM-500	8-11	300	500	18.5-22	13
WLXM-650	11-18	336	650	20-30	13
WLXM-750	18-25	400	750	45	13
WLXM-850	25-35	500	850	75	10
WLXM-1250	35-70	650	1250	130	10

Working Principle

Structure principle

The main structure of the bauxite ball press is composed of transmission system, main frame, reducer, belt conveyor, pre-compression device, roller sleeve ball slot alignment device, hydraulic system and electronic control. When working, bauxite is added quantitatively and evenly to the pre-compression device of the ball press to maintain a stable material level in the pre-compression device, and then the pre-compression screw in the pre-compression device forcibly presses the bauxite into the middle of the pair of rollers to carry out the material Pre-compressed and transported to the arc-shaped notches of the two pairs of rollers. The surfaces of the two pairs of rollers are uniformly distributed with the same shape of the roller sockets. The bauxite bites into the groove and is forcibly compressed. As the counter roller continues to rotate, the bauxite is demoulded under the action of its elastic force and gravity.

Finished spherical

The bauxite ball press can produce square, ball-egg, round, goose-egg, pillow and other spherical shapes for users to choose from. If users have special spherical needs, they can also define by themselves. The finished product sample is shown in the figure below:
