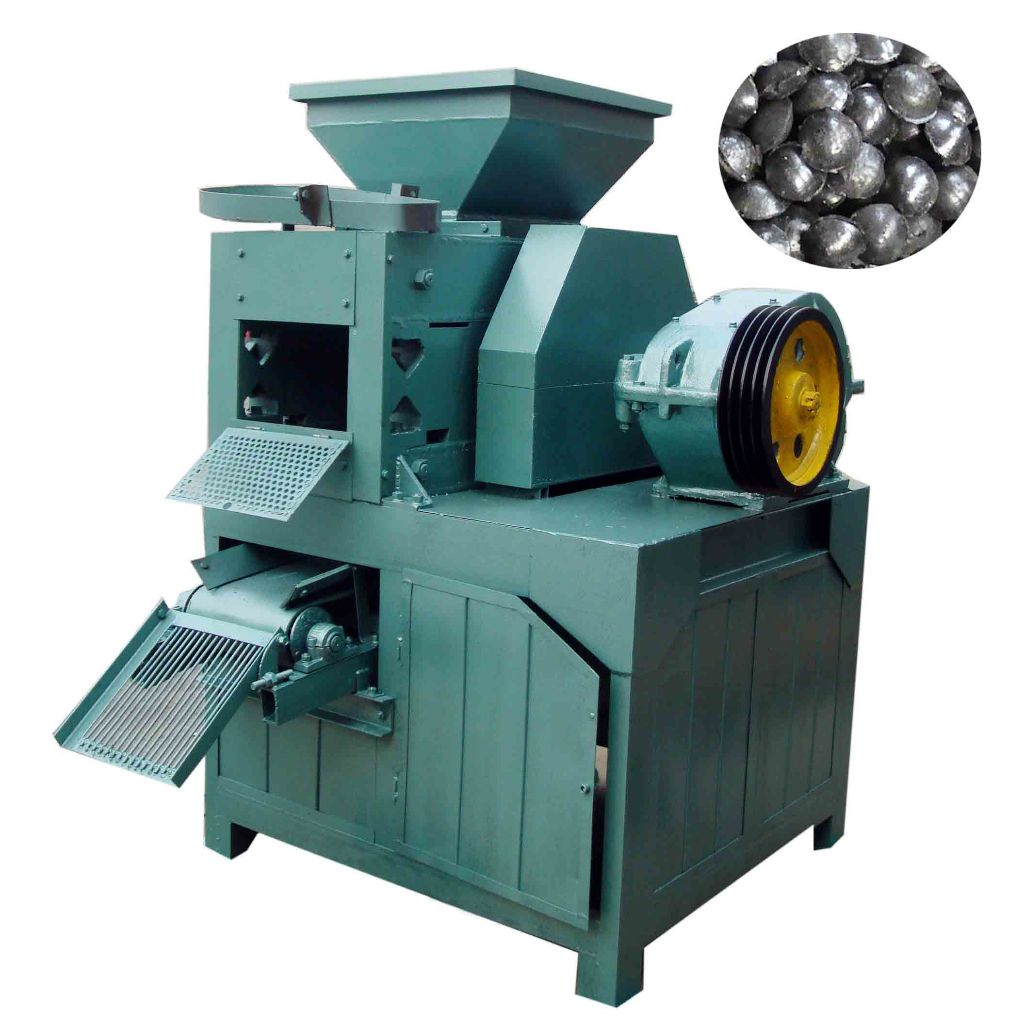

Kaolin Ball Press

Capacity：10,000 to 300,000 t/y......

Introduction： The kaolin ball press is a kind of equipment that presses powdery materials into balls. It has a wide range of applications and can mold various types of powde.....

Product Description

The kaolin ball press is a kind of equipment that presses powdery materials into balls. It has a wide range of applications and can mold various types of powdery materials. It is a commonly used material forming equipment in many industries.

Product Advantage

Product Potential

1. After years of industrial use and improvement, Zhengzhou Weilit kaolin ball press has high ball formation rate and low power consumption compared with other similar products.

2. Our company's kaolin ball press has obvious points such as compact structure and easy maintenance and debugging. It is suitable for large, medium and small enterprises to establish a production line with a certain production scale.

3. In addition to the quality of the equipment, the Zhengzhou Weilit kaolin ball press machine keeps improving. In terms of product after-sales service, we will do our best to satisfy customers. The installation and commissioning of the equipment will be carried out by the manufacturer's technicians on site to relieve customers' worries.

Performance potential

In order to meet the requirements of material forming, the pre-compression screw adopts an electromagnetic speed-regulating motor, and the speed-regulating method is manual control. The user can appropriately change the speed of the pre-compressor according to the ball-forming situation to achieve the ideal ball-forming rate and production capacity. The raw materials are passed through the sieving machine, and the qualified pellets are sieved for packaging, and the sieved materials can be returned to the bin to mix with the new materials and then be compressed.

Product Parameter

technical parameter

model	Hourly production (t/h)	Roll width (mm)	Roll diameter (mm)	Power (kw)	Spindle speed (r/min)
WLXM-360	2-4	250	360	7.5	18
WLXM-400	4-8	280	400	11-15	15
WLXM-500	8-11	300	500	18.5-22	13
WLXM-650	11-18	336	650	20-30	13
WLXM-750	18-25	400	750	45	13
WLXM-850	25-35	500	850	75	10
WLXM-1250	35-70	650	1250	130	10

Note: Technical parameters are subject to change without notice. For more detailed information, please contact us for free, thank you!

Working Principle

Structure principle

It is transmitted to the reducer through the belt, and the reducer is transmitted to the driving shaft through the coupling, and then by a pair of open gears to ensure that the two rollers are synchronized (equal speed and reverse) and the material storage bin enters the forming hopper evenly through the quantitative equipment. , The unit molding pressure of the material is changed from small to large, and the molding pressure reaches a large value at the center line of the pair of rollers. After the material passes the line, the molding pressure decreases rapidly so that the material enters the ball-off state, and the ball is off-ball smoothly.

Finished spherical

The kaolin ball press can produce square, ball-egg, round, goose-egg, pillow and other spherical shapes for users to choose from. Our company can define special spheres according to user needs. The finished product sample is shown in the figure below:
