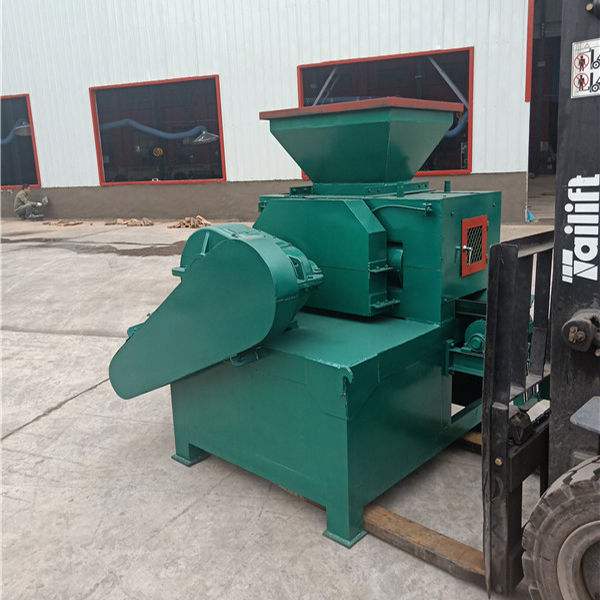

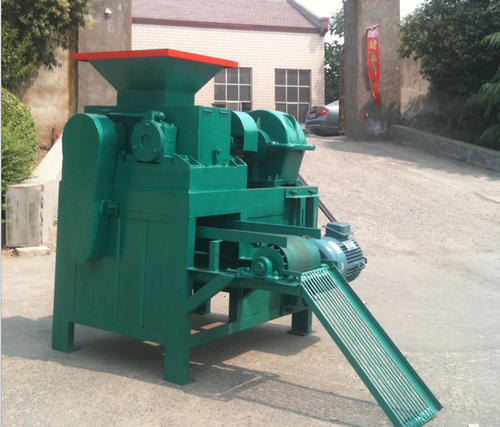

1. The roller skin of Zhengzhou Welite manganese ore powder briquetting machine adopts 65 manganese casting. After special heat treatment, the hardness can reach more than 58 degrees. The roller skin adopts combined assembly and can be replaced after wear.







2. Thoroughly solve the environmental pollution; high and stable output, constant pellet quality; high efficiency and low consumption, reliable performance, convenient maintenance; less investment, quick results; less labor and a significant drop in cost.







3. Zhengzhou Welite manganese ore powder briquetting machine is a well-known brand with good quality and service.



 It is transmitted to the reducer through the V-belt, and the reducer is connected to the coupling, and then to the driving shaft by a pair of open gears to ensure the synchronization of the two roller shafts (constant speed reverse). The piston of the driven roller hydraulic cylinder is supported <constant The pressure type is supported by the inclined iron), the system pressure is guaranteed by the hydraulic circuit, the hydraulic control valve and the accumulator. The material uniformly enters the middle of the pair of rollers, and the unit molding pressure of the material that compresses the rollers at the same speed and reverse rotation is changed from small to large. The molding pressure at the center of the pair of rollers reaches a large value. After the material passes the line, the molding pressure is rapid Decrease makes the material enter into the ball-off state, and the ball is off smoothly.



Maintenance and anti-rust



　1. The rust removal method for the equipment as a whole. The rust removal method is mainly powered by electricity or compressed air, equipped with an appropriate rust removal device, reciprocating or rotating, and the tool is light and mobile, and can remove rust more thoroughly. 　



 2. The rust removal method without damaging the steel plate, the high pressure water abrasive rust removal technique, does not damage the outer steel plate of the manganese ore powder ball press, and the rust removal principle is to use the impact effect of the high pressure water jet, the grinding effect of the abrasive, and the water skid effect , To destroy the adhesion of rust and coating to the steel plate, and achieve the effect of rust removal. 　　



 3. Pickling and rust removal, manganese ore powder ball press pickling and rust removal techniques are suitable for the rust removal method of indoor ball presses. At present, the production and use of ball presses are extremely common, whether it is the manufacturer or the manganese powder ball press equipment. Users, all need to understand the rust removal method of the ball press, in order to better maintain and maintain the manganese ore powder ball press, and improve the production capacity of the manganese ore powder ball press.



Operation matters



The screw feeding device of the manganese ore powder ball press machine is driven by an electromagnetic speed-regulating motor, and is rotated by a belt pulley and a worm reducer to force the pressed material into the main feed inlet. Due to the constant torque characteristics of the electromagnetic speed-regulating motor, when the amount of material pressed by the screw feeder is equal to the amount of material required by the mineral powder ball pressing machine, a constant feeding pressure can be maintained to stabilize the pellet quality. If the feeding amount is too large, the electric power of the feeding device will be overloaded; if the feeding amount is too small, the ball will not be formed. Therefore, proficient operating skills are an important condition to ensure the normal work of the pressure ball.



 Finished spherical



The manganese ore powder briquetting machine can produce a variety of spherical shapes, such as square shape, ball-egg shape, round shape, goose-egg shape, and pillow shape, for users to choose from. The special ball press sphere can be defined by our company according to the needs of users. The finished product sample is shown in the figure below:
