Capacity：50-400t/h......
Introduction： Vibrating feeder is also called vibrating feeder. In the production process, the vibrating feeder can feed block and granular materials from the storage bin to.....
Vibrating feeder is also called vibrating feeder. In the production process, the vibrating feeder can feed block and granular materials from the storage bin to the receiving device evenly, regularly and continuously. In the sand and gravel production line, it can continuously and evenly feed the crushing machinery. , And conduct coarse screening of materials, which are widely used in the crushing and screening combined equipment of metallurgy, coal mine, mineral processing, building materials, chemical industry, abrasives and other industries.
1. Small size, light weight, simple structure and convenient operation.
2. Convenient installation and maintenance, and low operating cost.
3. High efficiency, low power consumption and large feeding capacity.
4. This equipment works in a state far beyond resonance, so the amplitude is stable, the operation is reliable, and the adaptability to various materials is strong.
5. Uniform feeding, good continuous performance, adjustable excitation force, and flow can be changed and controlled at any time.
6. The eccentric block is the excitation source, with low noise, low power consumption, good adjustment performance, and no punching phenomenon.
7. The closed structure of the machine body can prevent dust pollution, stable operation and long service life.

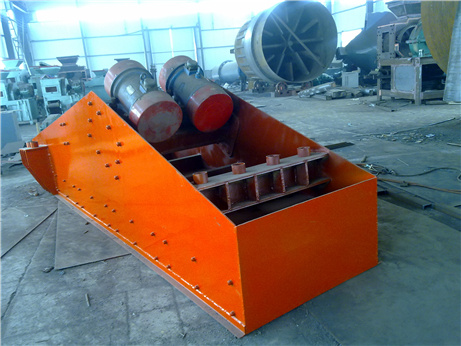

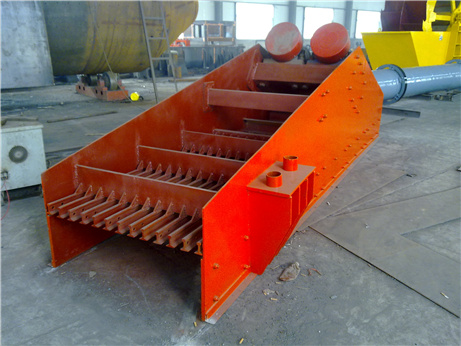

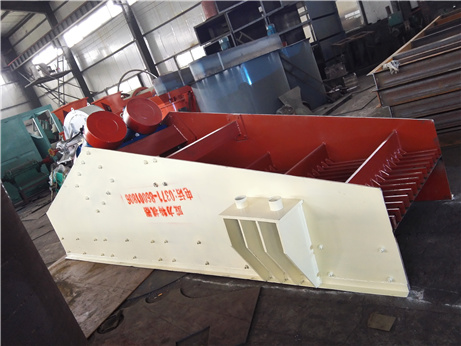

The vibrating feeder uses the rotation of the eccentric mass in the vibrator to generate centrifugal force, so that the movable parts such as the screen box and the vibrator make forced continuous circular or approximate circular motion. The vibrating feeder is composed of a feeding trough, a vibration exciter, a spring support, and a transmission device. The vibration source of the trough vibrating feed is a vibration exciter, which is composed of two eccentric shafts (active and passive) and a gear pair. The driving shaft is driven by the motor through the V-belt, and the gear on the driving shaft meshes with the driven shaft. When rotating, the active and passive shafts rotate in opposite directions at the same time, which makes the tank vibrate, so that the materials flow continuously, and the purpose of conveying materials is achieved.
