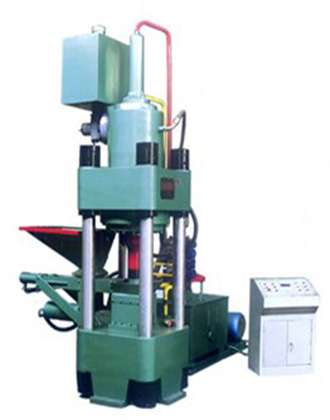

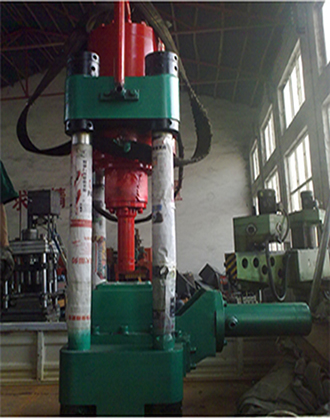

Metal briquetting machine


Introduction: Metal briquetting machine, also called metal baler and hydraulic metal briquetting machine, is a kind of mechanical equipment that extrudes various scrap metal.....

Product Description

 Metal briquetting machine, also called metal baler and hydraulic metal briquetting machine, is a kind of mechanical equipment that extrudes various scrap metal products under normal conditions and packs them with special packaging tapes. The equipment can handle cans, paint buckets, iron cans, scrap iron, scrap steel, iron sheets, bicycles, color steel tiles, light and thin materials, pig iron, thin iron, exposed cans, red bull cans, scrap aluminum, scrap copper, iron barrels, and automobiles. Scrap metal such as shells, car racks, metal scraps, aluminum alloys, etc. can be pressed into forming at one time.




Metal briquetting machines are mainly used in recycling and processing industries and metal smelting industries. Various metal scraps, steel shavings, scrap steel, scrap iron, scrap copper, scrap aluminum, aluminum shavings, disassembled car shells, waste oil barrels and other metal raw materials can be squeezed into rectangular, cylindrical and other qualified furnace materials in various shapes , It is convenient for storage, transportation and recycling, increase the speed of furnace, improve labor efficiency, and reduce transportation, manpower, and smelting costs.

Product Advantage



The metal briquetting machine adopts hydraulic transmission, compact structure, convenient removal and installation, simple operation, easy maintenance, reliable sealing, and no foot screws during installation. Users can customize the packing specifications and dimensions according to their needs, and cooperate with transportation or storage to a greater extent. It is a good equipment to improve labor efficiency, reduce labor intensity, save manpower, and reduce transportation costs.

1. Using hydraulic drive, work smoothly, safe and reliable;

2. Use manual or PLC automatic control mode of operation;

3. The discharging modes are: side-turning bag, side-pushing bag, forward-pushing bag or no-out bag four ways;

4. No foot screws are required for installation, and diesel engines can be used as power in places where there is no power supply;

5. Product specifications and types: The metal baler has 63 to 600 tons, 10 varieties and more than 20 specifications, which can meet the different needs of customers at different levels.

Product Parameter

model Nominal thrust Material box size Bale size Bale weight Yield Equipped with power
(KN) (Mm) (Mm) (Kg) (T/h) (KW)
ZXJD-63 630 1000*600*500 190*190 15~30 0.4~0.8 7.5
ZXJD -100 1000 1000*700*550 230*230 30~40 0.6~1.2 11
ZXJD -125 1250 1200*700*600 300*300 50~75 1.2~1.5 15
ZXJD -135 1350 1400*600*600 600*240 60~80 1.5~2.8 twenty two
ZXJD -160 1600 1600*1000*800 400*400 110~150 2.2~3.0 twenty two
ZXJD -200 2000 1800*1400*900 450*450 210~300 3.0~5.0 22*2
ZXJD -250 2500 2000*1750*1000 500*500 250~280 5.0~6.3 22*2
ZXJD -315 3150 2500*2000*1200 500*500 250~360 4.0~6.5 37*2
ZXJD -400 4000 3000*2000*1200 500*600 250~380 6.8~8.0 45*2

Working Principle



The metal briquetting machine mainly uses the property of metal materials to produce plastic deformation under the action of external force, and gives the metal materials enough external force that can gather and produce deformation, thereby forming a compact bundle. When working, the packing materials are placed in the packing box of the packing machine, and the hydraulic oil cylinder works to suppress the packing materials, and the packing materials are compressed into various metal bales.
