Mesh belt dryer

Capacity:4-30 tons/hour......

Introduction: The WD mesh belt dryer produced by our factory is suitable for various types of briquettes, coke powder balls, etc. produced by the ball press; various metallu.....

Product Description





The WD mesh belt dryer produced by our factory is suitable for various types of briquettes, coke powder balls, etc. produced by the ball press; various metallurgical ore powder pellets, iron oxide skin balls, sludge balls, and slag The drying of mineral balls has the advantages of wide application, high efficiency and energy saving. The length of the machine can be long or short, depending on the needs of users. It can be used with production lines with 4, 6, 8, 10, 15, 20, 30 tons/hour output. This machine is a high-temperature dryer with an internal temperature of about 150-600°C and a drying time of 60-150 minutes, which is easy to operate and maintain.


Mesh belt dryer is a commonly used continuous drying equipment, which can be widely used in chemical, food, building materials, electronics and other industries. It is especially suitable for drying sheet, strip, and granular materials with good ventilation. Paste-like materials can also be dried after being shaped by a granulator or extruding machine.

Product Advantage

 The head motor drives the reducer to decelerate and then transmits it to the driving gear. The driving gear drives the rear splint (chain), (the width of the splint is controlled by the support rod, and the support rod is covered with a high-temperature-resistant mesh belt). Drive the lower mesh belt to carry the pellets slowly in one-way motion. The pellets enter the high temperature zone when they are discharged at the feed port. During the moving process, they contact with hot air to remove water. After moving in about 40-60 minutes (speed adjustable), they are discharged at the discharge port. This part is mainly composed of passive gear, automatic tensioning device, feed, and frame.

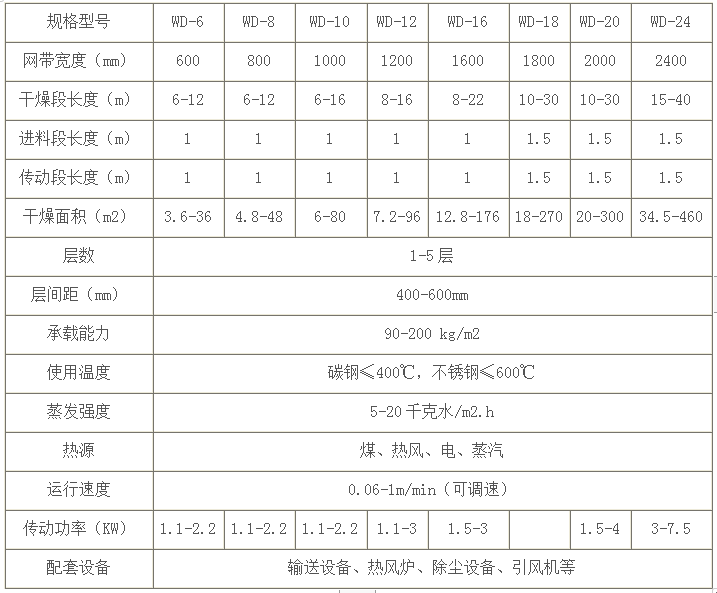

Product Parameter


Working Principle

 The main principle of the mesh belt dryer is to evenly spread the materials on the mesh belt. The mesh belt adopts a 12-60 mesh steel mesh belt, which is driven by a transmission device to move back and forth in the dryer. The hot air flows through the materials. After that, the water vapor is discharged from the moisture drain hole, so as to achieve the purpose of drying. The length of the cabinet is composed of standard sections. In order to save space, the dryer can be made into a multi-layered type. Commonly used are two-chamber three-story, two-chamber five-story, length 6-40m, and effective width 0.6-3.0m.
